Automobile Bulk Loading

Our company adopts automobile bulk loader for bulk material loading. The automobile bulk loader is developed by our company from the successful experience at home and abroad. It can load dry powder and granular materials into vehicles and ships, suitable for electric power, building materials, chemical industry, grain and other departments. The machine can be interlocked with feeding facilities under the material silo. After truck is fully loaded, feeding facilities will stop working. The loading and unloading process is automated with high efficiency and less dust pollution. It is an ideal equipment for truck or ship loading of bulk powdery or granular materials.

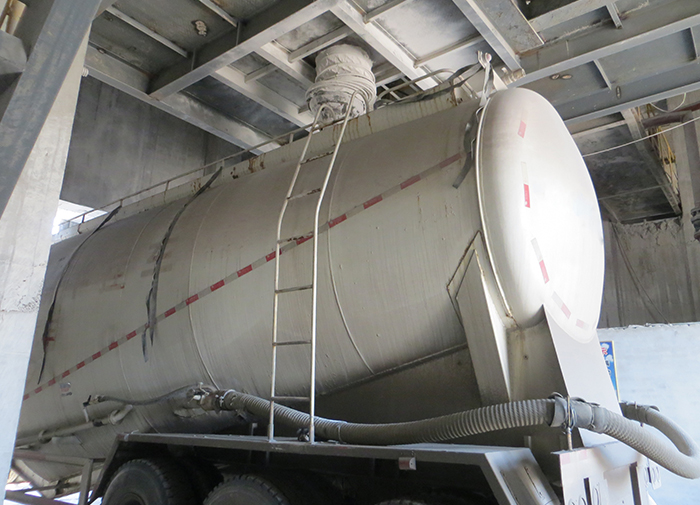

Automobile bulk loader is mainly used for truck or ship loading under dry dust collector, ash hopper or ash storage warehouse, slag storage warehouse in thermal power plant.

Chat Now

Get Inquiry

Send Email

Introduction

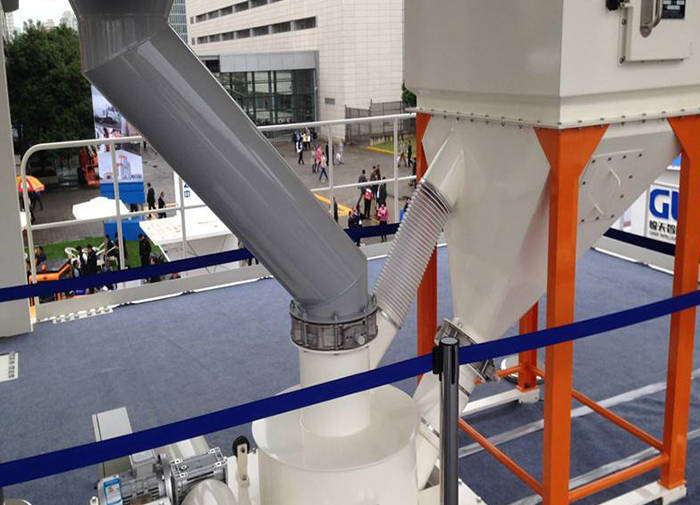

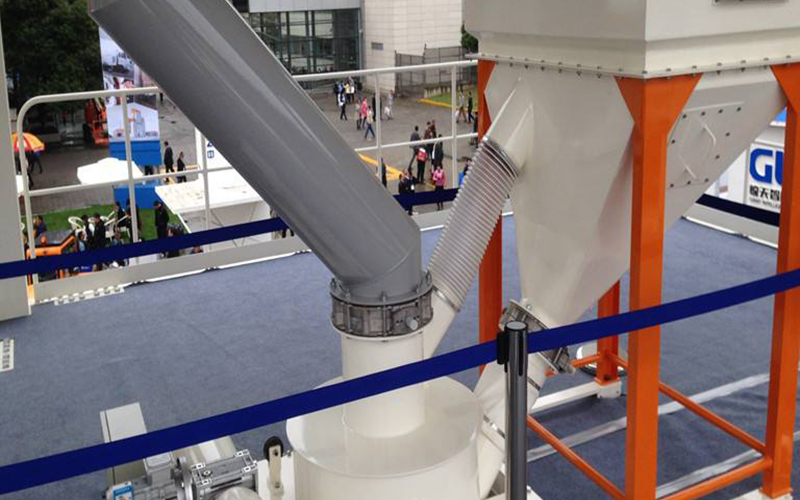

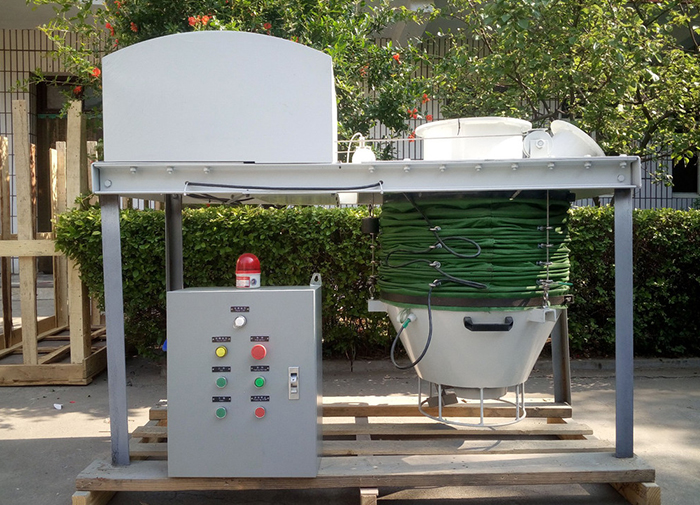

The equipment is composed of a frame, a winching device, a telescopic discharging device, a material level detection device, a dust removal system, etc. The winch device includes a motor, a reducer and a roller device. The telescopic discharging device includes a loader head, a double-layer telescopic sleeve and an outer telescopic hose. When working, the telescopic discharging device is driven by the winching device. The material level detection device can detect the full position of the material, and it is controlled jointly with the discharging system to send out the full material alarm signal and close the discharging valve, to achieve the purpose of automatic control of the loading process.

The design of automobile bulk loader includes two parts: mechanical equipment and electrical control.
