Silo System Solution for Bulk Material Storage and Transportation
Cement Industry
In each section of cement plant, storage and transportation system plays a decisive role. For example, raw material homogenization and transportation, clinker storage and transportation, as well as finished cement storage, conveying and distribution. SRON provides bulk material storage and transportation system solutions for cement plant customers.
Cement Storage and Transportation System
SRON provides customers with welded steel silos, bolted steel silos, spiral steel silos and other structural types of finished cement silos. SRON cement steel silo has characteristics of good sealing performance, short construction period, small footprint, and low construction and operation cost. SRON can design various types of silos of which single silo storage capacity is 0.1-30,000 tons to meet customers’ needs. The cement silo is equipped with a fluidization discharging system to achieve the homogenization of cement in the process of cement feeding and discharging.
SRON provides customers with system solutions and services for cement storage and transportation, bulk loading of tank truck, and bag packaging, etc.
Clinker Storage and Transportation System
You can use steel silos, high wall silos and tent-shaped warehouse to store clinker. The storage capacity of a steel silo is 1-50,000t, and the silo body is steel structure. It is characterized by small footprint, short construction period and low construction cost. The storage capacity of a high wall silo is 1-100,000t, the silo wall is reinforced concrete retaining wall, and the silo roof is grid structure. It is characterized by small footprint, and large storage capacity. The tent-shaped warehouse is conical, consisting of the bottom concrete retaining wall and steel structure grid frame. The advantages of the warehouse are good cooling effect and low requirements for bearing capacity of the foundation.
Cement Mixing System
Cement mixing system has three main subsystems: Slag powder and limestone powder and OPC powder storage system; Slag powder and limestone powder and OPC powder mixing and stirring system; Finished cement feeding and discharging system. The cement mixing system can produce many kinds of cement by mixing different materials such as slag powder, fly ash, limestone powder and cement. SRON cement mixing system has features of low construction cost, short construction period and high precision of continuous metering mixing, which can bring significant economic benefits to customers.
Name:
*Email:
*Tel/Whatsapp:
*Message:
Typical process layout

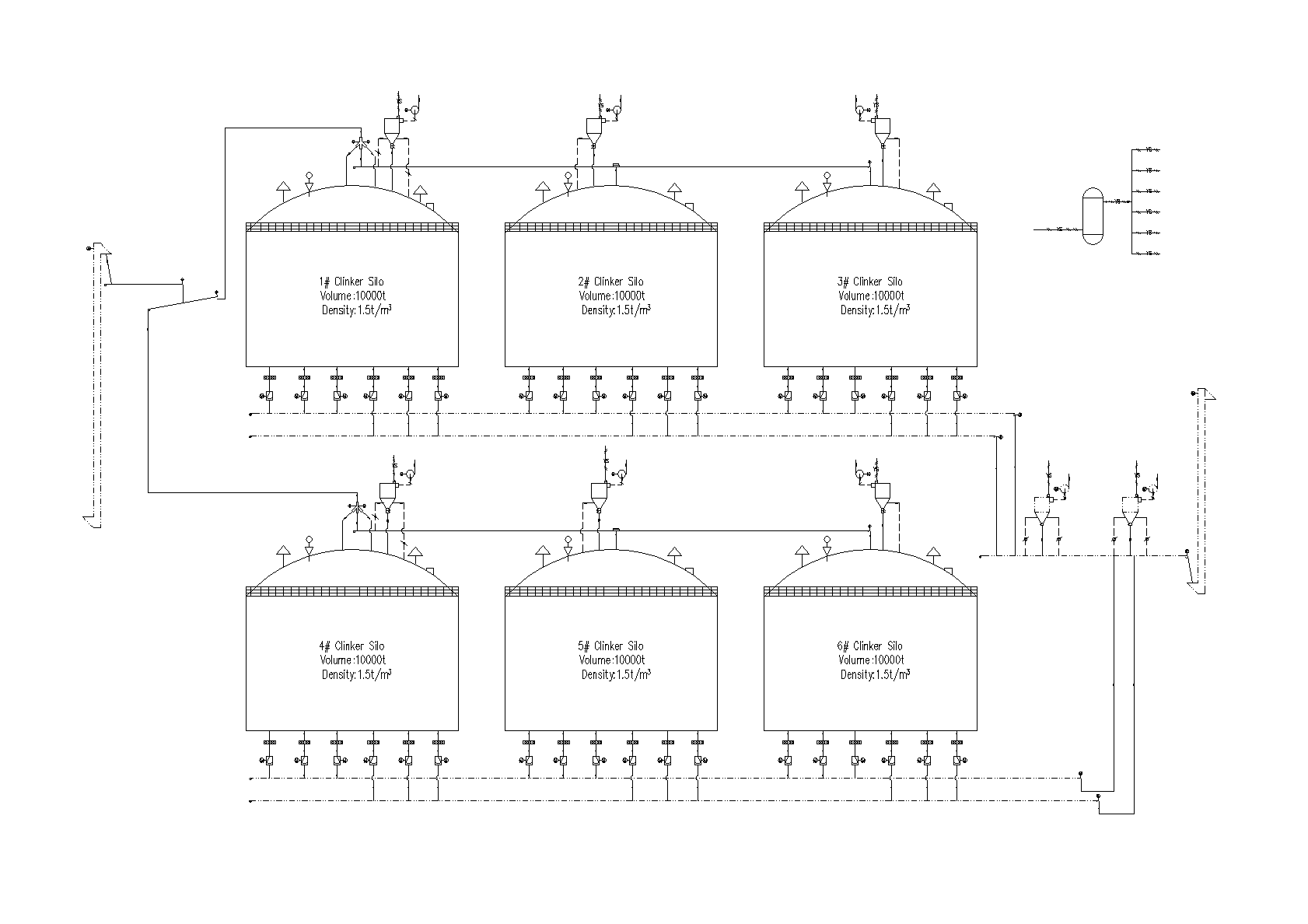

Cement Storage and Transportation System

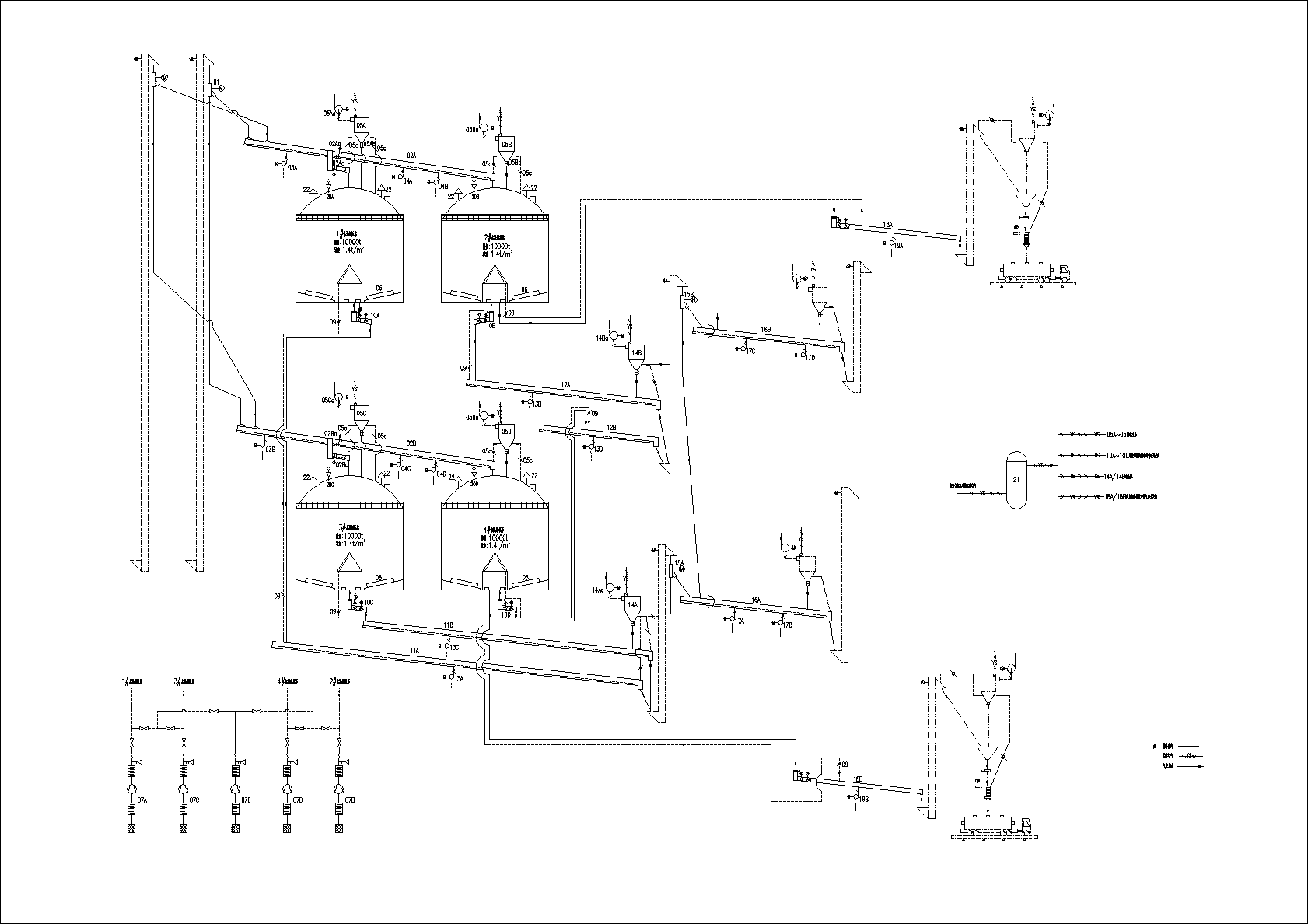

Clinker Storage and Transportation System
SILO TYPE SELECTION
Large welded steel silo
Large Welded Steel Silo
Spiral steel silo
Spiral Steel Silo
Large bolted steel silo
Large Bolted Steel Silo
Small bolted steel silo
Small Bolted Steel Silo
WHY SRON SILO
Our vision is to be international respected brand in the field of bulk materials storage and transportation field; Technology builds the beauty of project is our product and service principles; High-standard, globalized and to be an internationalized brand are our business philosophy.
EPC SERVICE
Engineering Consultation
Engineering Design
Equipment Manufacturing
Project Construction
Installation Debugging
Operation Management
Grouped Equipment
Tgd-Type Wire Belt Bucket Elevator
TGD-type wire belt bucket elevator
View More
Strip Stockyard
Strip stockyard
View More
Truss
Truss
View More
Packing Machine
Packing Machine
View More
Reference
We have built projects in more than 30 countries and regions, with more than 900 sets of steel silos and up to 3 million tons of materials storage capacities.
Welded cement silo

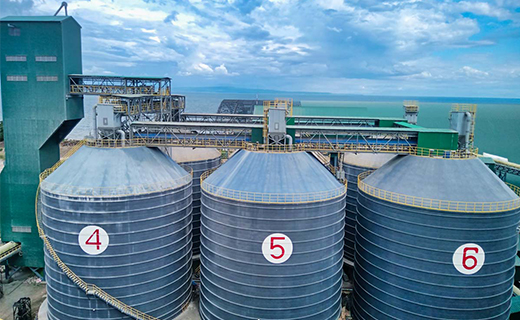

6x10,000T Welded Clinker Silo System for San Miguel Corporation
This project is San Miguel Corporation, Davao, the Philippines 10x10000 tons steel silos system contracted by SRON. Among which, there are six clinker steel silos.
Material: Clinker
Reserves: 60,000 tons
Silo Type: Large welded steel silo
Clinker silo
Hubei-JUHAI Environment Ceramsite and Phosphogypsum Storage Packaging Project
This project is the Phase II of the silo project of phosphogypsum solid waste industry of Hubei JUHAI Environment, which is the first ceramsite and phosphogypsum storage and packaging engineering project constructed by our company.
Material: Phosphogypsum
Number of Silos: 6
Silo type: Small welded steel silo

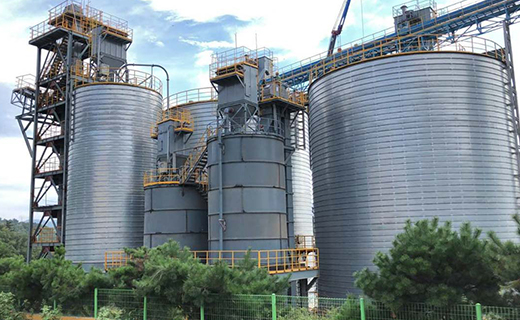

Spiral cement silo
Indonesia 6,000T Cement Steel Silo Project for SIG
This is a cement transfer project, of which the owner is SIG, the largest cement producer in Indonesia.
Material: Cement
Reserves: 6000 tons
Silo type: Spiral silo
