Silo System Solution for Bulk Material Storage and Transportation
Aluminum Industry
In the field of aluminum industry, SRON provides customers with: alumina storage steel silo, silo roof homogenization system, silo bottom gasification discharge system, air chute conveying system, ultra-dense phase conveying system of electrolytic aluminum plant, etc.

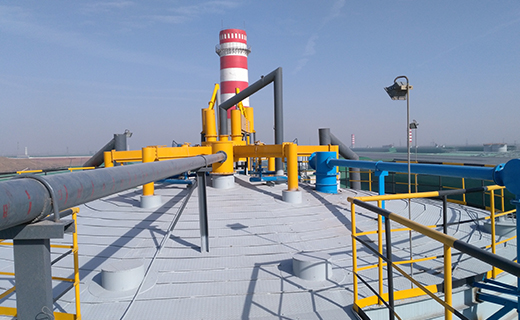

Storage and Transportation System of Alumina Plant
The storage and transportation system of alumina plant is used to transfer the alumina produced by the aluminum hydroxide calcinator to the alumina storage silo through the air chute, bucket elevator, silo roof distributor, etc. According to customers’ requirements, SRON can provide welded steel silos, and spiral steel silos. SRON alumina storage and transportation system is fully applicable to the characteristics of high abrasion of alumina, with low storage and transportation system investment and operation cost, low alumina breakage rate, and smooth discharge without plugging. Operating equipment is fully sealed, and has a long service life.

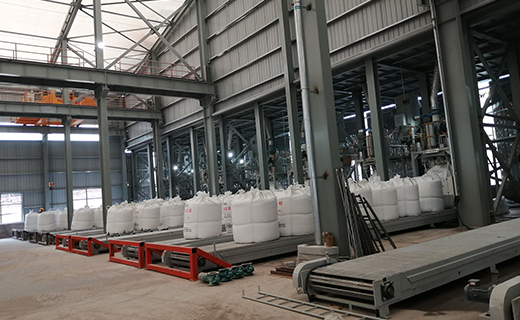

Ton Bag Packaging System of Alumina Plant
The alumina from the alumina storage silo is transported to the buffer silo above the ton packing machine through the air chute. After being packed by the ton packing machine, the alumina is transported out through the chain plate conveyor. SRON ton bag packing machine is highly automated, as it is equipped with microcomputer scale, so its packing accuracy is ±0.5%, and its packing capacity is ≥40 bags /h. Ton bag packing machine has characteristics of stable performance, high packing precision, and fast speed. Advanced dustproof and dust removal design can reduce the dust pollution in the working environment. Weighing system adopts comprehensive plate digital adjustment and parameter setting, with high sensitivity.

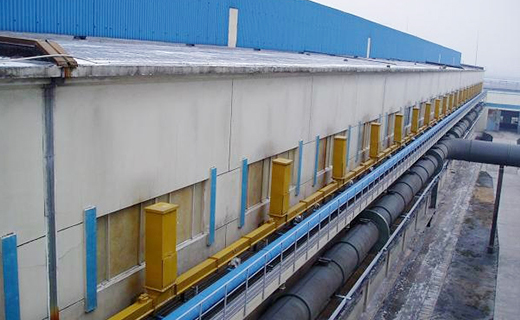

Storage and Transportation System of Electrolytic Aluminum Plant
The storage and transportation system of electrolytic aluminum plant solves the problems of alumina storage and alumina feeding to electrolytic cell in electrolytic workshop. Alumina is transported to the alumina silo through a bucket elevator or belt conveyor, and the alumina is uniformly discharged into the silo through the silo roof homogenization device. The alumina in the alumina silo is transported to the electrolytic cell tank in the electrolytic workshop through the air chute conveying system. SRON storage and transportation system of electrolytic aluminum plant adopts the segmented transportation process, with stable system operation and high feeding efficiency.
Name:
*Email:
*Tel/Whatsapp:
*Message:
Typical process layout

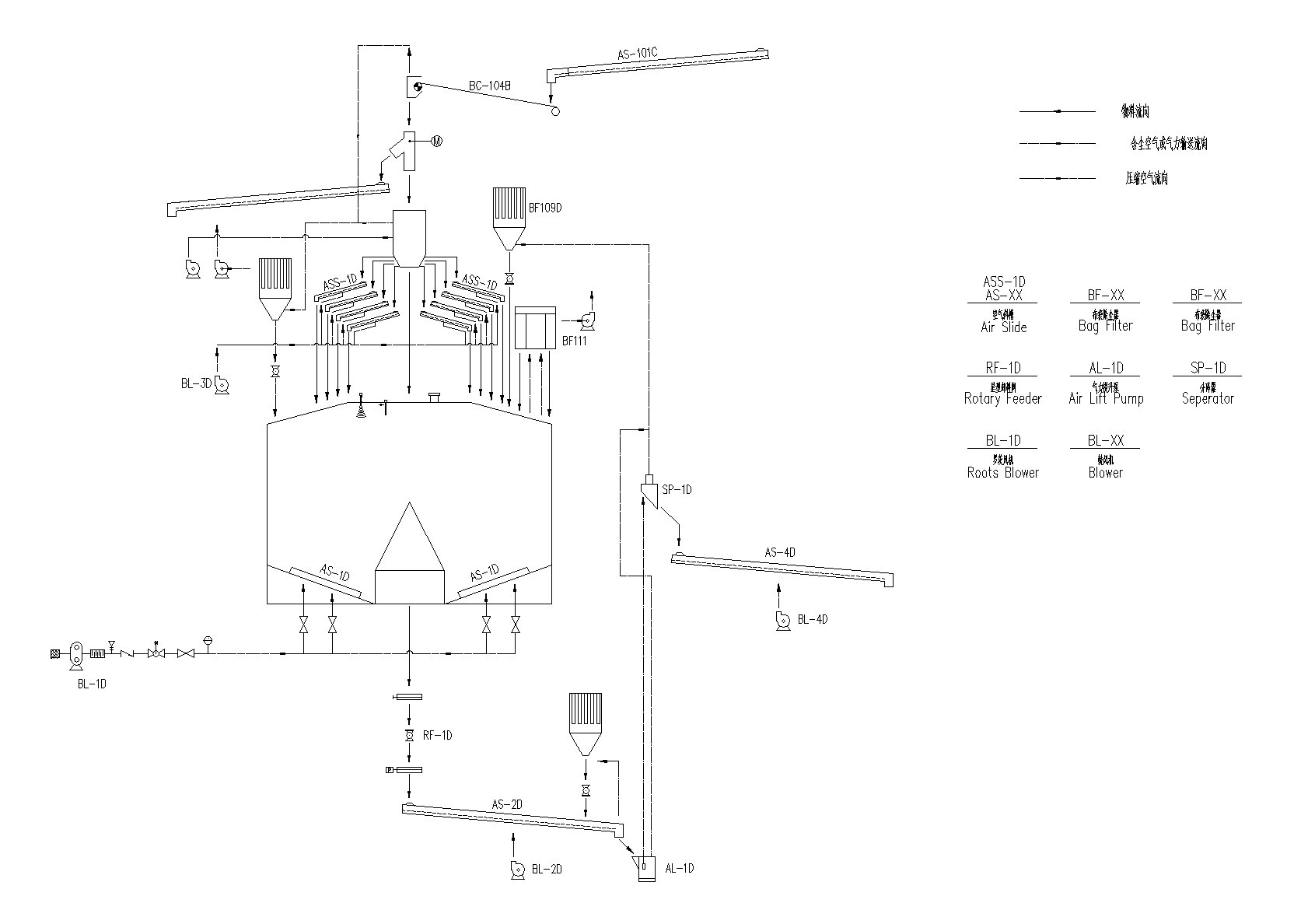

Storage System of Alumina Plant

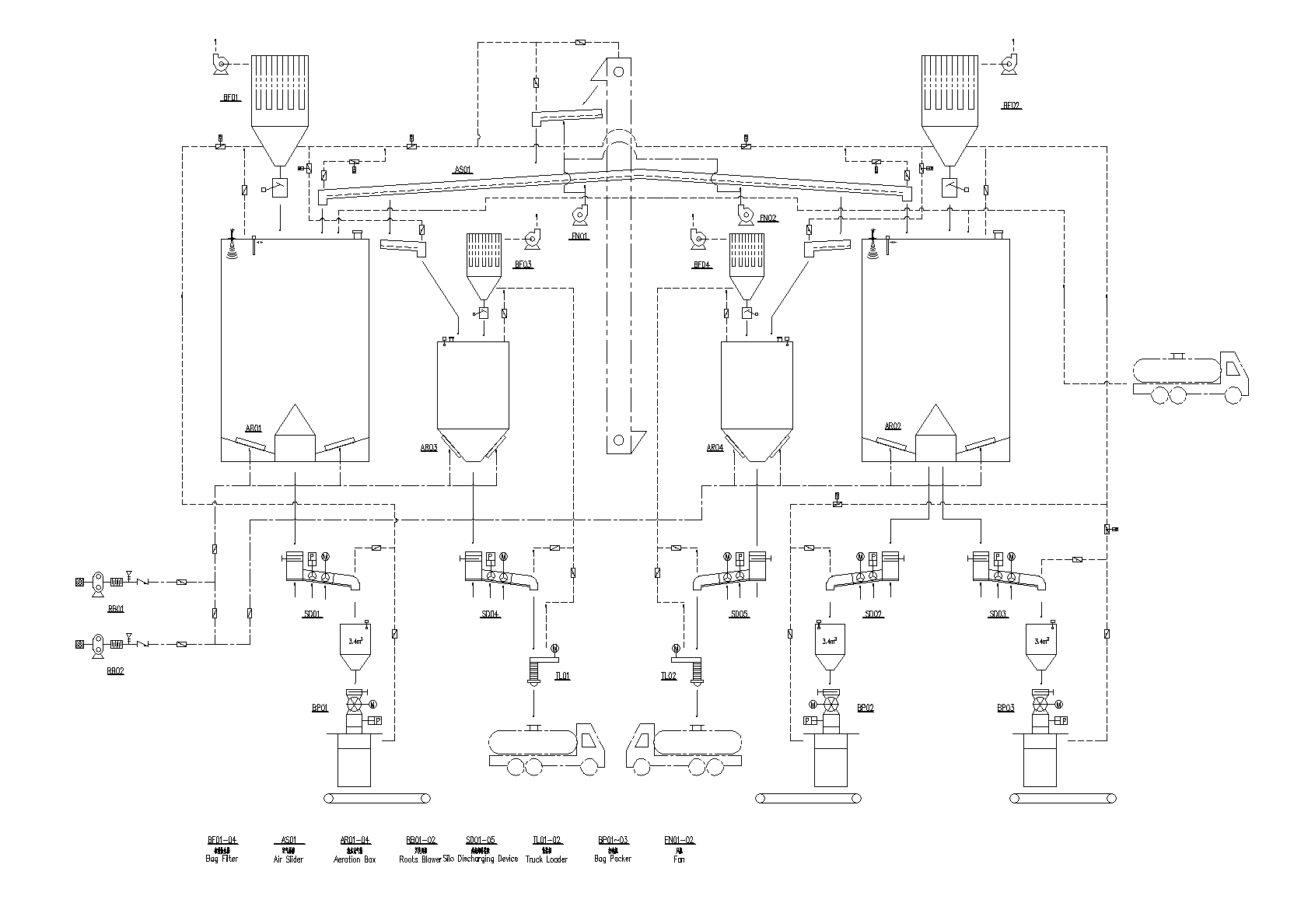

Alumina Ton Bag Packaging System
SILO TYPE SELECTION
Large welded steel silo
Large Welded Steel Silo
Spiral steel silo
Spiral Steel Silo
Large bolted steel silo
Large Bolted Steel Silo
Small bolted steel silo
Small Bolted Steel Silo
WHY SRON SILO
Our vision is to be international respected brand in the field of bulk materials storage and transportation field; Technology builds the beauty of project is our product and service principles; High-standard, globalized and to be an internationalized brand are our business philosophy.
EPC SERVICE
Engineering Consultation
Engineering Design
Equipment Manufacturing
Project Construction
Installation Debugging
Operation Management
Grouped Equipment
Tgd-Type Wire Belt Bucket Elevator
TGD-type wire belt bucket elevator
View More
Belt Conveyor
Belt Conveyor
View More
Plate Chain Bucket Elevator
Plate chain bucket elevator
View More
Air Chute
Air Chute
View More
Reference
We have built projects in more than 30 countries and regions, with more than 900 sets of steel silos and up to 3 million tons of materials storage capacities.
spiral steel silo
Baowu 3x5,000T Steel Slag Powder Steel Silos Project
The project is a domestic project undertaken by SRON. It is 3 sets of spiral steel silos with a total storage capacity of 15,000t for the storage and disposal of steel slag powder at BAOWU Wuhan Metal Resources Limited Company
Material: Steel Slag Powder
Reserves: 15,000 tons
Silo type: Spiral steel silo
Clinker silo
Hubei-JUHAI Environment Ceramsite and Phosphogypsum Storage Packaging Project
This project is the Phase II of the silo project of phosphogypsum solid waste industry of Hubei JUHAI Environment, which is the first ceramsite and phosphogypsum storage and packaging engineering project constructed by our company.
Material: Phosphogypsum
Number of Silos: 6
Silo type: Small welded steel silo
Welded cement silo
6x10,000T Welded Clinker Silo System for San Miguel Corporation
This project is San Miguel Corporation, Davao, the Philippines 10x10000 tons steel silos system contracted by SRON. Among which, there are six clinker steel silos.
Material: Clinker
Reserves: 60,000 tons
Silo Type: Large welded steel silo
