Silo System Solution for Bulk Material Storage and Transportation
Bulk Material Stockyard
Bulk material stockyard is the main form of bulk material storage, which can be divided into strip stockyard, spherical stockyard and high cylinder wall warehouse according to the different storage structures.
Strip Stockyard
Strip stockyard is widely used in building materials, metallurgy, steel and other industries, with dual functions of storage and homogenization. Strip stockyard adopts grid structure, and uses stacker and reclaimer to complete mechanized stacking and reclaiming. There are various ways of stacking and reclaiming, which can be designed according to the project scale, customer’s actual situation and site conditions. Steel frame structure or plane grid structure is adopted at the top of the strip stockyard. SRON strip stockyard has the characteristics of low cost, short construction period, good homogenization effect and easy expansion.
Circular Stockyard
The top of circular stockyard is spherical grid structure and its bottom is reinforced concrete retaining wall. The circular stockyard uses the central reclaimer to complete the stacking and reclaiming operations. The diameter of a circular stockyard is generally between 60~120m. The cantilever stacker at the top of the central column can rotate and pitch around the central column in a range of 360 degrees. Circular stockyard covers an area of circular shape, which is adaptable. The circular stockyard also has the advantages of small area, high site utilization rate, convenient stacking and reclaiming operations, low investment cost, and continuous simultaneous stacking and reclaiming operations.
Raw Material Silo
For the occasions that raw material reserves are not large, and homogenization is not required, you can use a silo to store raw materials. Raw material silo can be steel silo or reinforced concrete silo. SRON can provide steel silos of which single silo storage capacity is 1-50,000 tons and reinforced concrete silos of which single silo storage capacity is 1-80,000 tons and the diameter is between 20 and 60m. SRON will design different types of silos and feeding and discharging systems according to project size, material properties and feeding and discharging methods. SRON material silo is characterized by low investment cost, small footprint and good sealing.
Typical process layout
Strip Stockyard
Circular Silo
Large welded steel silo
Large Welded Steel Silo
Spiral steel silo
Spiral Steel Silo
Large bolted steel silo
Large Bolted Steel Silo
Small bolted steel silo
Small Bolted Steel Silo
Our vision is to be international respected brand in the field of bulk materials storage and transportation field; Technology builds the beauty of project is our product and service principles; High-standard, globalized and to be an internationalized brand are our business philosophy.
Engineering Consultation
Engineering Design
Equipment Manufacturing
Project Construction
Installation Debugging
Operation Management
Grouped Equipment
Belt Conveyor
Belt Conveyor
View More
Unattended Intelligent Loading and Weighing System
Unattended intelligent weighing system
View More
Rapid & Quantitative Truck Loading System
Rapid & Quantitative Truck Loading System
View More

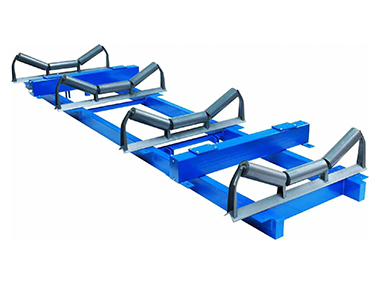

Belt Scale
Belt scale
View More
We have built projects in more than 30 countries and regions, with more than 900 sets of steel silos and up to 3 million tons of materials storage capacities.
Welded cement silo
6x10,000T Welded Clinker Silo System for San Miguel Corporation
This project is San Miguel Corporation, Davao, the Philippines 10x10000 tons steel silos system contracted by SRON. Among which, there are six clinker steel silos.
Material: Clinker
Reserves: 60,000 tons
Silo Type: Large welded steel silo
Clinker silo
Hubei-JUHAI Environment Ceramsite and Phosphogypsum Storage Packaging Project
This project is the Phase II of the silo project of phosphogypsum solid waste industry of Hubei JUHAI Environment, which is the first ceramsite and phosphogypsum storage and packaging engineering project constructed by our company.
Material: Phosphogypsum
Silo type: Small welded steel silo
Loading station
Pakistan Thar Coal Loading Station Project
Thar coal field, the seventh largest coal field in the world, has about 175 billion tonnes of raw coal reserves. The Thar coal-power project is a flagship project of the Belt and Road Initiative and the first coal-power integration project in the China-Pakistan Economic Corridor (CPEC) and even in Pakistan.
Material: Coal
Reserves: 2x5000 tons
Silo type: Concrete silo
