Silo System Solution for Bulk Material Storage and Transportation
Thermal Power Industry
Fly ash is produced with the combustion of pulverized coal in thermal power plant, which will pollute the environment if it is not treated properly. Recovery and utilization of fly ash can avoid environmental pollution and increase economic benefits. SRON provides customers with fly ash storage, transportation and separation systems, and professional solutions.
Fly Ash Storage System
SRON can provide various specifications of fly ash silo storage system with storage capacity of 1000-50000 m³. Fly ash storage and transportation system consists of large steel silo, pneumatic conveying feeding pipe, silo roof dust collector, material level instrument, pressure release valve, silo bottom fluidization discharging system, conveying equipment and small distribution silo. According to the specific situations of customers, SRON provides customers with fly ash storage, transportation, and distribution system solutions with short construction period and low investment cost, to create profits for customers to the greatest extent.
Fly Ash Pneumatic Conveying System
SRON provides customers with pulse pneumatic conveying system, positive pressure pneumatic conveying system, thin-phase pneumatic conveying system and other solutions. SRON fly ash pneumatic conveying system has the characteristics of high automation, simple operation, fast conveying and high conveying efficiency. SRON pneumatic conveying equipment includes silo type pump, material sealing pump, spiral pneumatic conveying pump, rotary feeder, pneumatic lifting pump, electrical control system, etc. SRON pneumatic conveying system has long service life, almost no maintenance and flexible conveying.
Fly Ash Separation System
The principle of fly ash separation system is to separate the fly ash produced by thermal power plants into coarse ash, grade I ash and grade II ash according to different particle sizes through a separator. Advantages of SRON fly ash separation system: stable and reliable operation, high degree of automation, simple system operation, large processing capacity, high separation efficiency which is more than 85%, high wear-resisting performance, low investment cost and flexible system layout. SRON can adopt discrete arrangement, centralized arrangement on the side of silo and centralized arrangement on the top of silo according to customers’ requirements.
Typical process layout

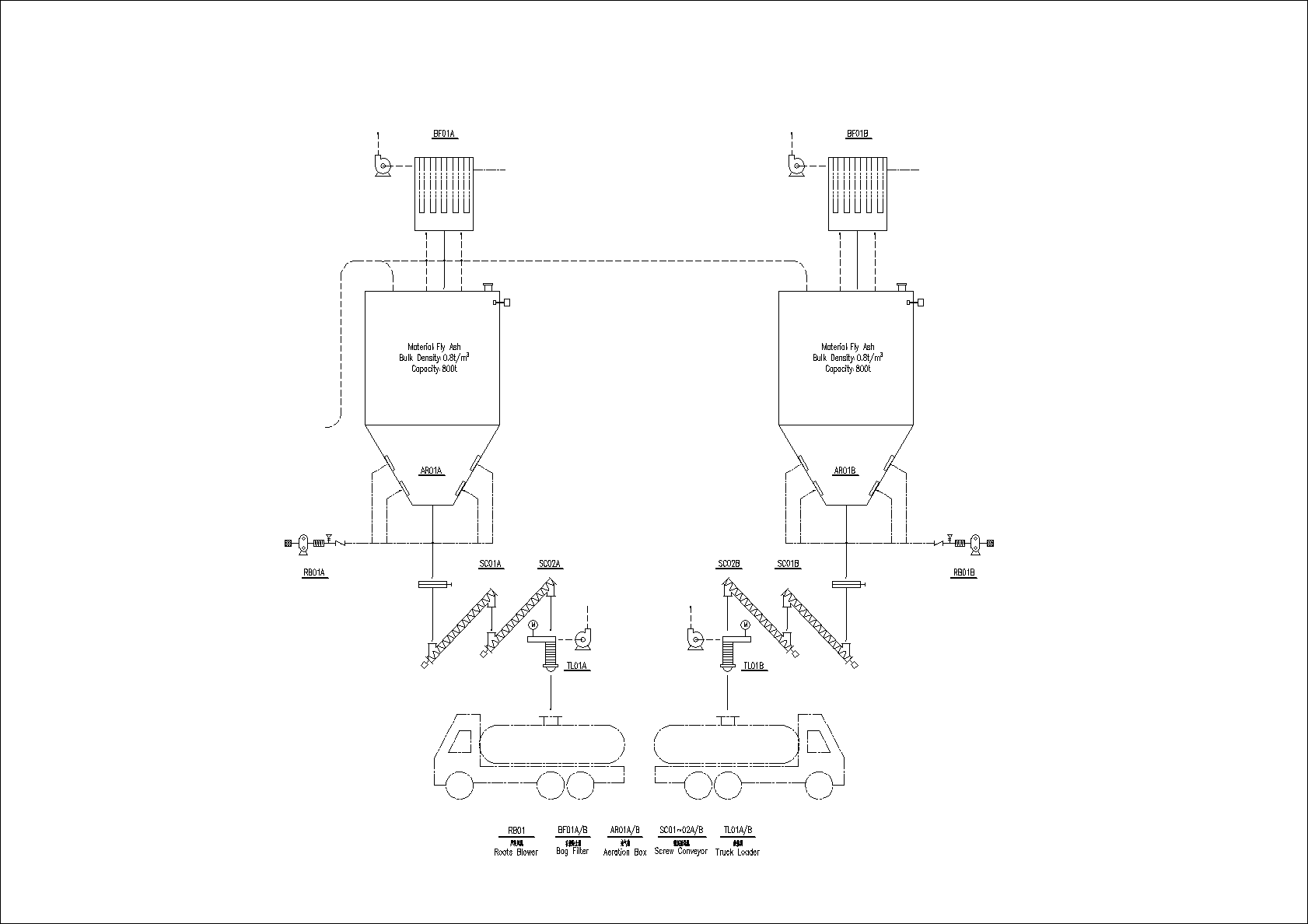

Fly Ash Storage System

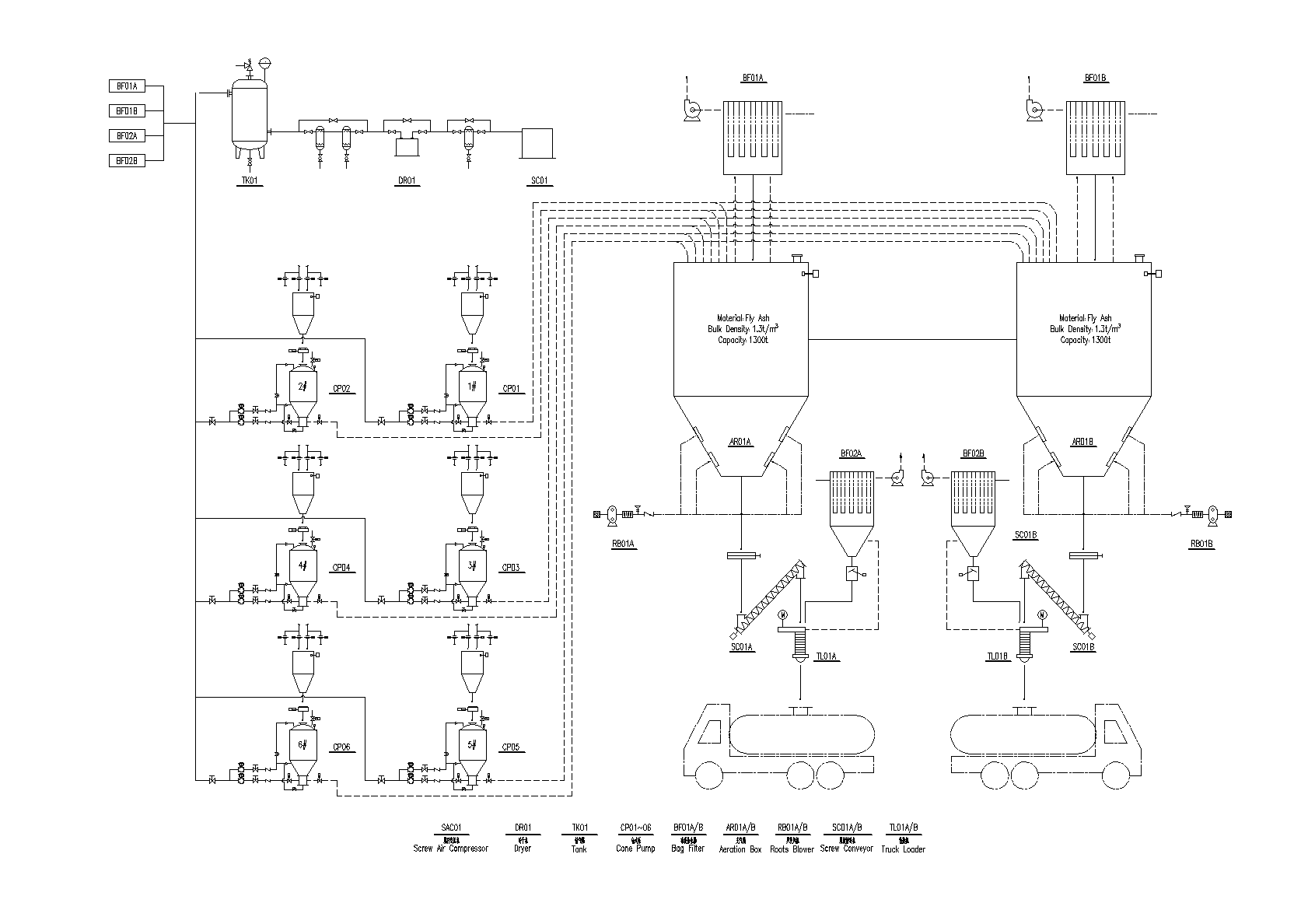

Fly Ash Pneumatic Conveying Project
Large welded steel silo
Large Welded Steel Silo
Spiral steel silo
Spiral Steel Silo
Large bolted steel silo
Large Bolted Steel Silo
Small bolted steel silo
Small Bolted Steel Silo
Our vision is to be international respected brand in the field of bulk materials storage and transportation field; Technology builds the beauty of project is our product and service principles; High-standard, globalized and to be an internationalized brand are our business philosophy.
Engineering Consultation
Engineering Design
Equipment Manufacturing
Project Construction
Installation Debugging
Operation Management
Grouped Equipment
Fly Ash Separation System
Fly ash separation system
View More
Dust Collector
Dust collector
View More
Radar Level Meter
Radar level meter
View More
Belt Conveyor
Belt Conveyor
View More
We have built projects in more than 30 countries and regions, with more than 900 sets of steel silos and up to 3 million tons of materials storage capacities.
Welded cement silo
6x10,000T Welded Clinker Silo System for San Miguel Corporation
This project is San Miguel Corporation, Davao, the Philippines 10x10000 tons steel silos system contracted by SRON. Among which, there are six clinker steel silos.
Material: Clinker
Reserves: 60,000 tons
Silo Type: Large welded steel silo
Clinker silo
Hubei-JUHAI Environment Ceramsite and Phosphogypsum Storage Packaging Project
This project is the Phase II of the silo project of phosphogypsum solid waste industry of Hubei JUHAI Environment, which is the first ceramsite and phosphogypsum storage and packaging engineering project constructed by our company.
Material: Phosphogypsum
Silo type: Small welded steel silo
Loading station
Pakistan Thar Coal Loading Station Project
Thar coal field, the seventh largest coal field in the world, has about 175 billion tonnes of raw coal reserves. The Thar coal-power project is a flagship project of the Belt and Road Initiative and the first coal-power integration project in the China-Pakistan Economic Corridor (CPEC) and even in Pakistan.
Material: Coal
Reserves: 2x5000 tons
Silo type: Concrete silo
