Mist Spray Dust Suppression System

The high-pressure mist spray dust removal equipment uses a high-pressure plunger pump to atomize water with high pressure, so that the mist can quickly adhere to and condense the suspended dust in the air and fall to the ground, so as to achieve the purpose of spraying mist to remove dust and air purification.
Mist spray dust suppression system
Mist spray dust suppression system
Introduction
Dust pollution is a direct threat to the life and health of workers. Now countries all over the world are paying more and more attention to dust management. The use of mist spray dust removal equipment in all kinds of dusty places can quickly and effectively realize dust removal, dust suppression and dust reduction, and effectively improve the environment of workshops and construction sites.
The working principle of high pressure mist spray dust removal equipment is to use the high pressure plunger pump to raise the pressure of water to 5~6MPa, atomize the pressurized water going through the high pressure conveying pipeline by the high pressure atomizing nozzle to produce mist particles with the diameter of 0-20μm, so that mist particles can quickly absorb heat from the air, complete gasification and spreading, adhere to and condense the suspended dust in the air and fall to the ground, to achieve the purpose of spraying mist to remove dust and air purification.
Structure

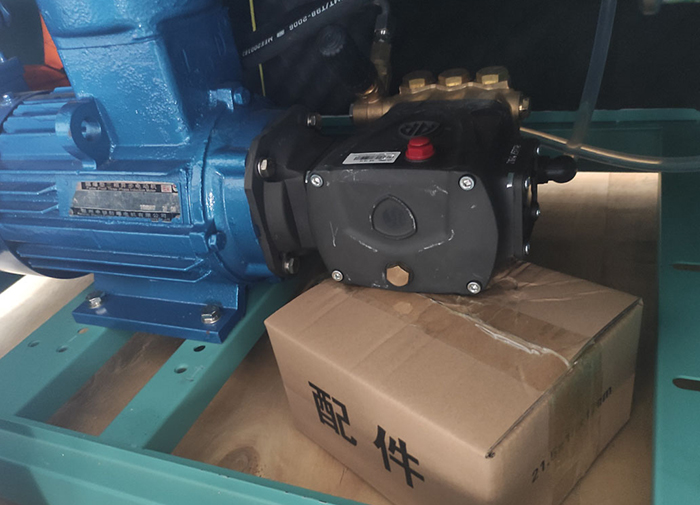

Mist spray dust suppression system mainly consists of dust suppression engine, high pressure pipeline, atomizing nozzle and control system.
Name:
*Email:
*Tel/Whatsapp:
*Message:
Advantage
01
Fine Humidifying Particles and High Humidification Efficiency
High-pressure atomizing nozzle can produce billions of mist droplets per second and mist droplet diameter is only 3 ~ 10μm. Particle humidifying is uniform, and relative humidity can be as high as 99 %.
02
Energy Saving
Atomizing 1 liter of water only consumes 6W power, which is one percent of traditional electrothermal mist spray equipment and one tenth of centrifugal or gas-water hybrid cooling system.
03
Reliability
The main engine of the high pressure micro mist cooling system adopts industrial imported plunger pump, which can run continuously for 24 hours. The nozzle and water mist distributor have no dynamic and wearing parts, and will not be damaged in dusty environment. It is equipped with overflow outlet to ensure the safety of water and water protection device, and it will automatically stop when it is short of water.
04
Sanitation
Water of high pressure micro mist system is sealed and non-recycled, so it will not lead to bacterial reproduction.
Name:
*Email:
*Tel/WhatsApp:
*Message:
Reference
We have built projects in more than 30 countries and regions, with more than 900 sets of steel silos and up to 3 million tons of materials storage capacities.
Plastic particle silo -- Square silo
Ecuador Plastic Pellet Steel Silo Project
Square bolted steel silo is a unique silo with high land utilization rate. Under the same area, square silo has 25% more capacity than round silo. It is especially suitable for the old factory expansion or reconstruction projects.
Material: Plastic particle
Silo volume: 190 m³
Quantity: 11 sets
Malaysia 3x5000T Wood Pellet Silo Project
During the project design phase, the company fully considered the storage characteristics of wood pellets, strictly monitored and managed the temperature and humidity in the warehouse, and achieved real-time monitoring. At the same time, combined with the project characteristics and the needs of the owner, high-yield in-and-out warehouse equipment was equipped to solve the problems of broken and blocked materials that may occur during centralized material incoming, feeding and long-distance transportation.
Storage Material: Wood Pellets
Silo Type: Spiral steel silos
Reserves: 3x5000tons
spiral steel silo
Baowu 3x5,000T Steel Slag Powder Steel Silos Project
The project is a domestic project undertaken by SRON. It is 3 sets of spiral steel silos with a total storage capacity of 15,000t for the storage and disposal of steel slag powder at BAOWU Wuhan Metal Resources Limited Company
Material: Steel Slag Powder
Reserves: 15,000 tons
Silo type: Spiral steel silo
