Uni-flow Chutes | Uni-flow Air Systems

Introduction

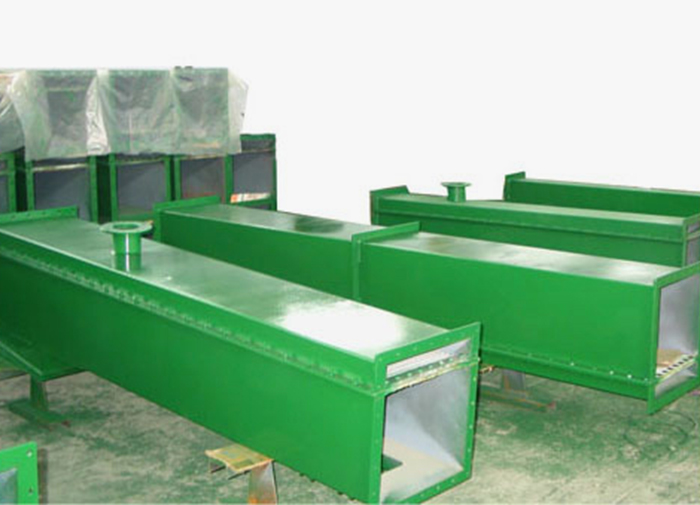

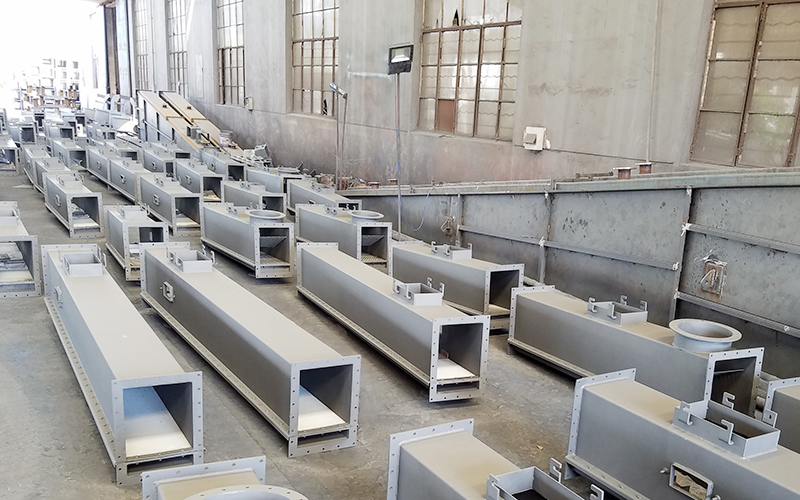

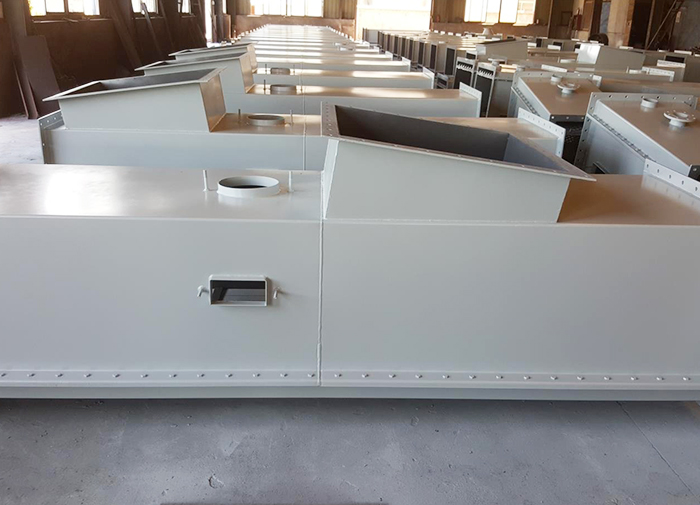

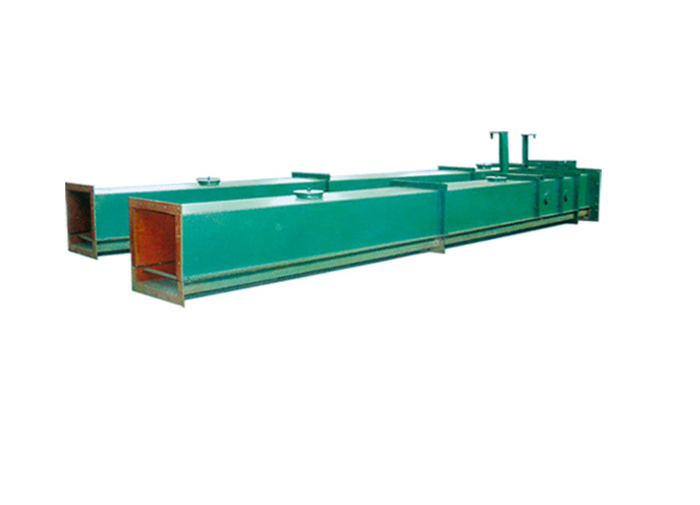

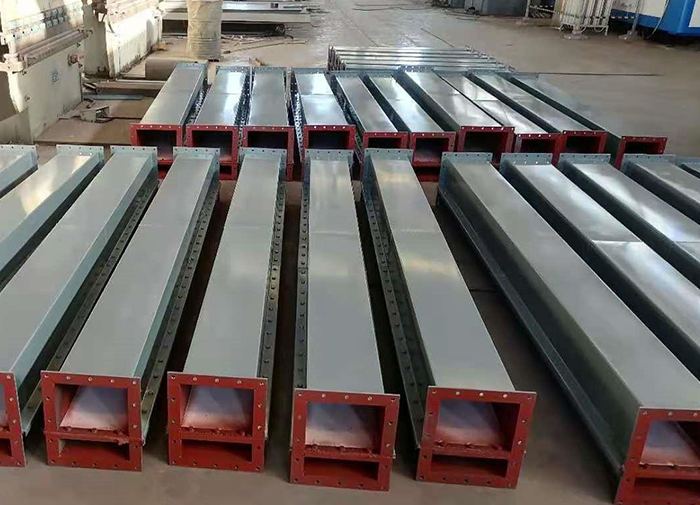

The main components of air chute are: feed chute, straight chute, chute frame, observe window, discharge chute. According to the transportation line, it can be configured with corresponding groove, three-way, four-way, shut-off valve, etc. The breathable layer of air chute is made of PETS-6 ( polyester ) synthetic fiber fabric. It is a new type of breathable layer, with the advantages of high temperature resistance ( up to 150 °C ), corrosion resistance, wear resistance, low moisture absorption, light weight, smooth surface and long service life.

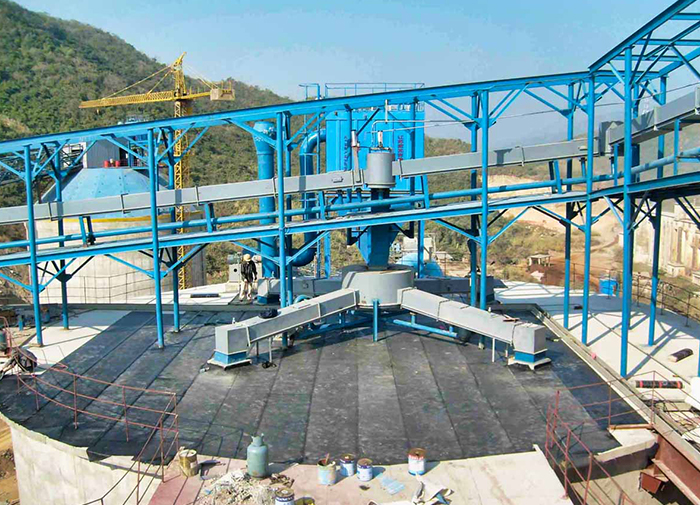

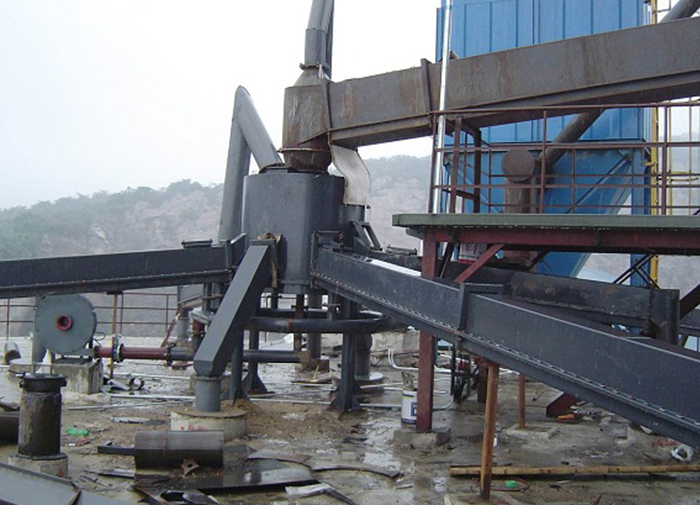

Air chute is widely used for conveying materials because of its characteristics of no rotating parts, easy to maintain, good sealing, no noise, safe and reliable operation, less power consumption, convenient to change the direction of conveying, and multi-point feeding and discharging.
Conveying material: dry powder material with water content ≤ 1% and temperature ≤ 150 ℃

Parameter

Specification				XZ200	XZ250	XZ315	XZ400	XZ500	XZ630	XZ800
Width of chute			mm	200	250	315	400	500	630	800
Conveying capacity	α=4°	Cement	T/H	22	40	70	130	220	320	400
	α=4°	Raw material		16	30	55	100	165	245	310
	α=6°	Cement		40	65	120	250	400	610	765
	α=6°	Raw material		30	55	90	185	300	455	565
	α=8°	Cement		50	80	140	300	470	720	900
	α=8°	Raw material		35	65	110	225	355	540	670
	α=10°	Cement		60	100	170	380	570	900	1080
	α=10°	Raw material		45	80	140	285	425	670	800
	α=12°	Cement		70	120	205	455	685	1080	1295
	α=12°	Raw material		50	95	165	340	510	805	960
