Introduction

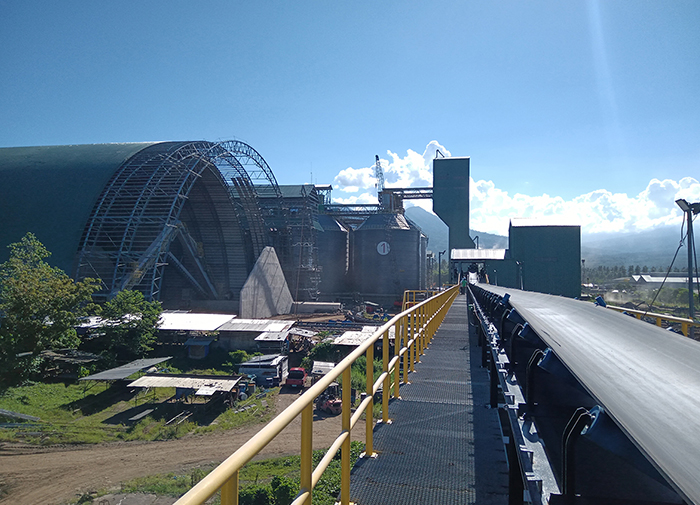

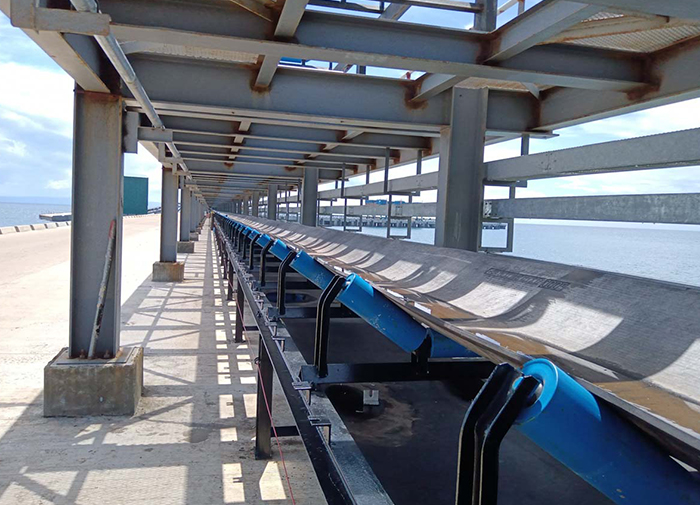

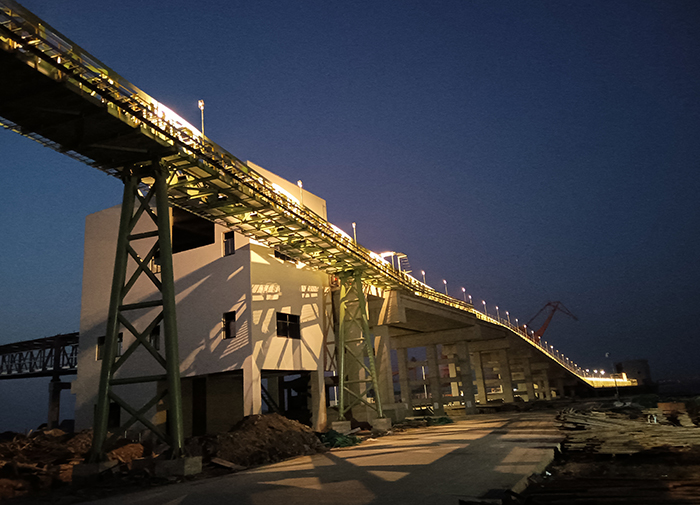

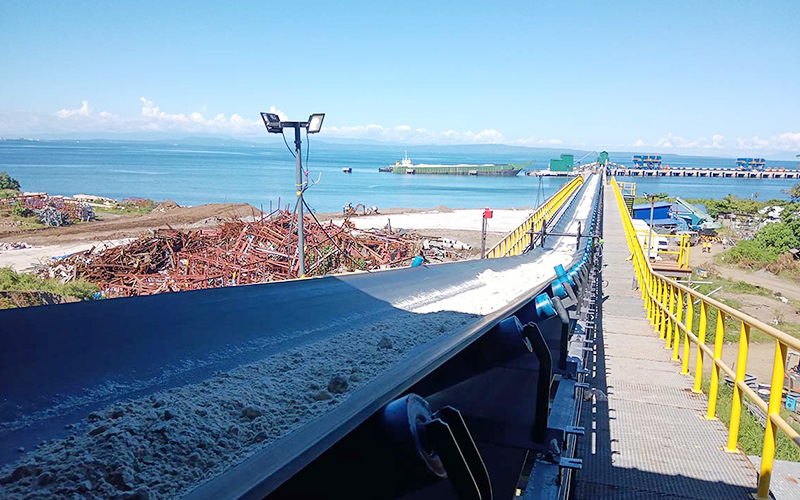

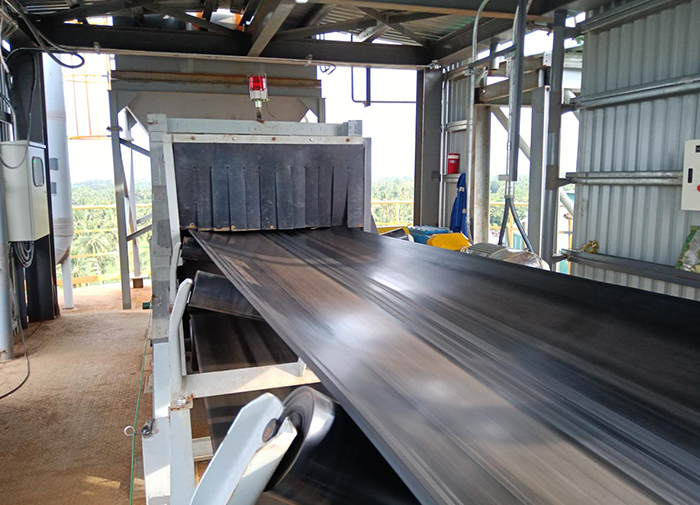

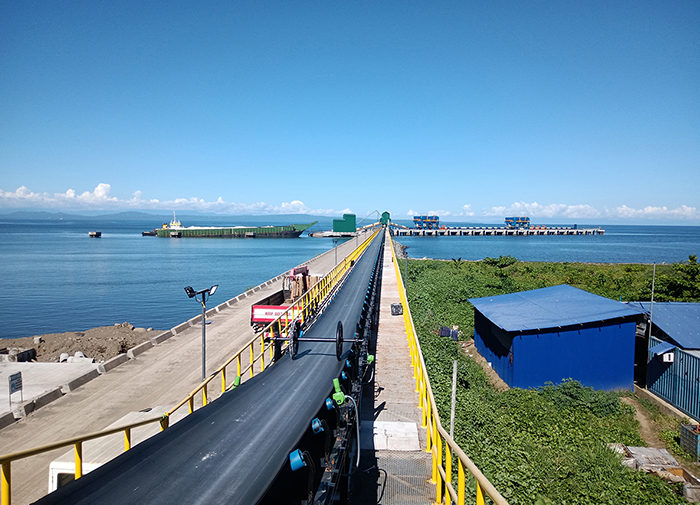

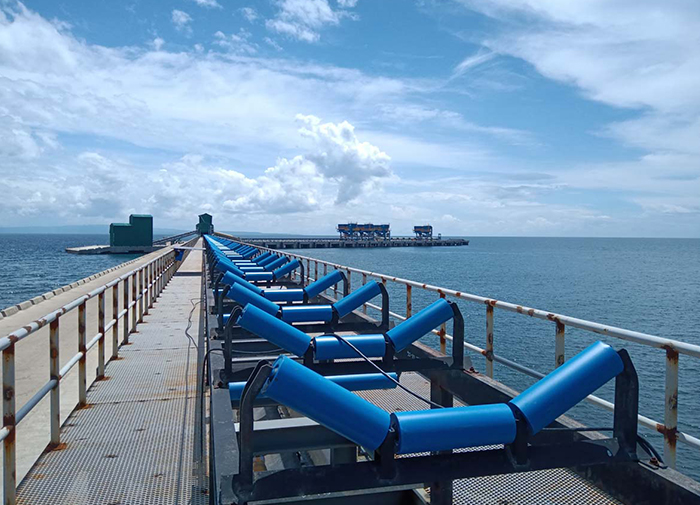

DTⅡ type fixed belt conveyor can be designed and calculated according to different terrain and working conditions and the requirements of conveying process, so as to be combined into a whole conveyor. It can be used to transport various bulk materials and finished goods with loose density of 500-2500kg /m³. Belt conveyor is mainly composed of frame, conveyor belt, roller, tensioning device, transmission device, etc.
The working environment temperature of belt conveyor is generally - 25 ~ 40 ℃. For belt conveyor working in special environment, if it is heat resistant, cold resistant, waterproof, anti-corrosive, and flame resistant, corresponding protective measures should be taken separately.

Advantages

Wide Scope of Application

Wide variety of conveying materials

Good Performance

Large conveying capacity

Strong Adaptability

Strong adaptability of conveying line

Flexible

Flexible loading and unloading

Long Service Life

Long service life & continuous working time

Very Safe

High security performance

Cost Effective

Low maintenance cost

Parameter

Belt width (mm)	belt speed（m/s）
	0.8	1.0	1.25	1.6	2.0	2.5	3.15	4.0	5.0	6.5
	conveying capacity（m³/h）
500	69	87	108	139	174	217
650	127	159	198	254	318	397
800	199	248	310	398	497	621	783
1000	324	405	507	649	811	1014	1278	1622
1200		594	742	951	1188	1485	1872	2377	2971
1400		825	1032	1321	1651	2064	2601	3303	4129
1600					2185	2732	3442	4371	5464
1800					2795	3493	4402	5590	6987	9083
2000					3467	4334	5461	6935	8668	11277
2200							6841	8687	10859	14120
2400							8286	10522	13152	17104
