Rapid & Quantitative Truck Loading System

Introduction

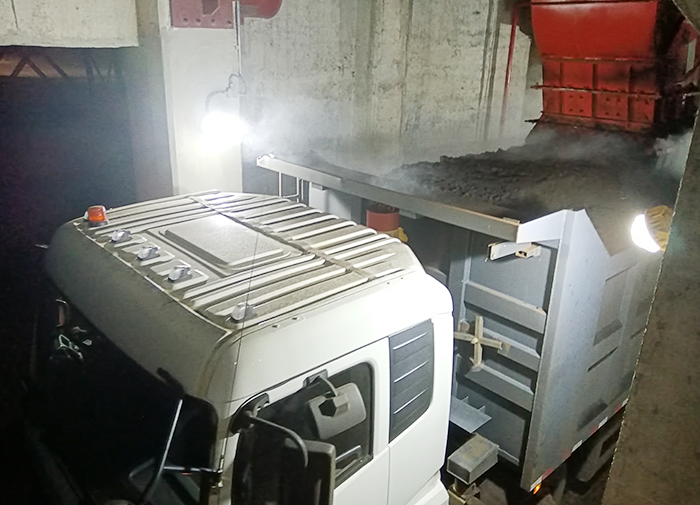

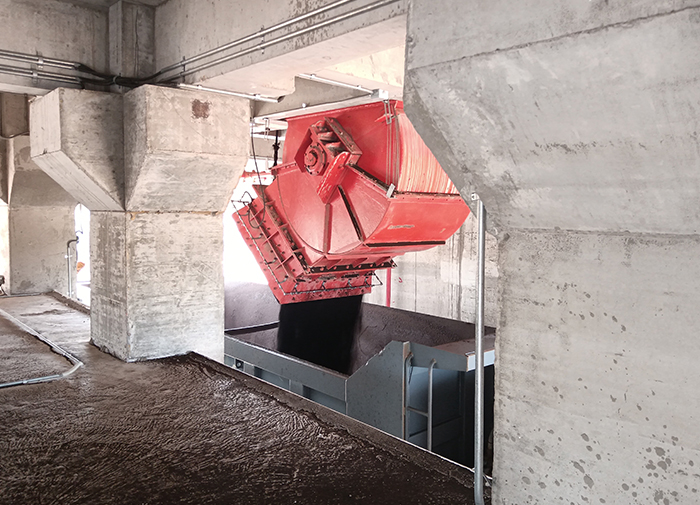

The SRON rapid & quantitative truck loading system is designed based on the working principle of large hopper scale. It can carry out batching and accurate weighing in the weighing silo according to the load of truck in advance by the accurate control of weighing silo batching gate. Once the truck is in place, it can realize the quick and accurate measuring loading by controlling the discharge gate and loading chute, or through the precise control of material reserves in the weighing silo. It is one of the most advanced bulk material truck loading method.
System Structure

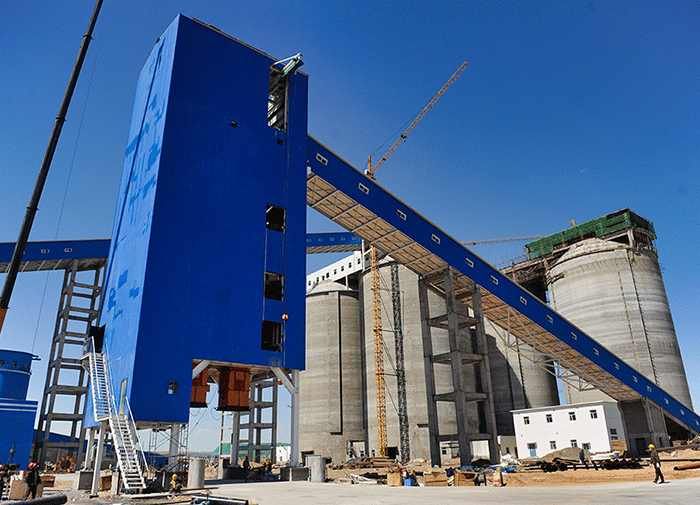

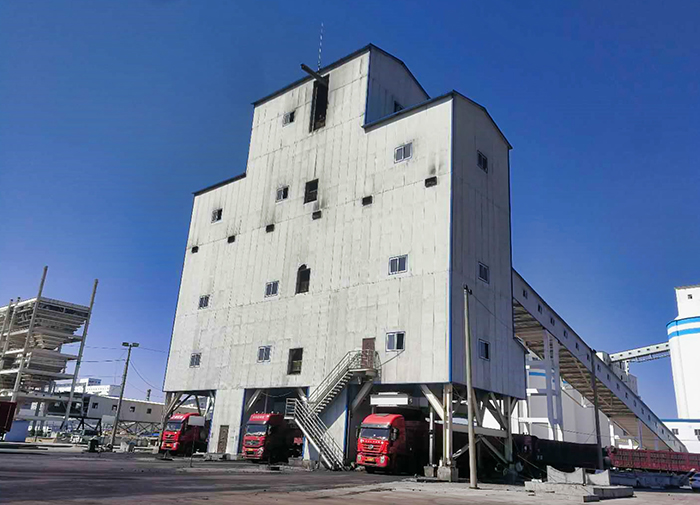

It is mainly composed of large steel structure tower, loading equipment, weighing system, hydraulic system, electronic control system, computer software system, etc.

Advantages

Hydraulic Control System

SRON hydraulic control system follows the principle of energy saving, fast response, high reliability, and smooth operation. The main pump, valve, oil cylinder are from the international famous brands, such as: Italy ATOS, UAS Parker, USA VICKERS.

Automatic Lubricating System

SRON truck loading system adopts automatic adding pressure lubrication system. The centralized lubrication pump station lubricates all the key rotating parts according to the program-setting, so as to ensure the lubrication effect of the equipment, which improves the service life of heavy-load supporting roller and loading chute rolling bearing, so the system can works stably and manpower maintenance is reduced.

Parameter

SRON rapid & quantitative truck loading system has several types: single channel, double-channel and multi-channel loading systems.
The technical parameters of single channel rapid and quantitative loading system are as follows:

Loading capacity	2500-3500t/h
Buffer silo capacity	200 t
Measuring accuracy of equipment	±0.1%

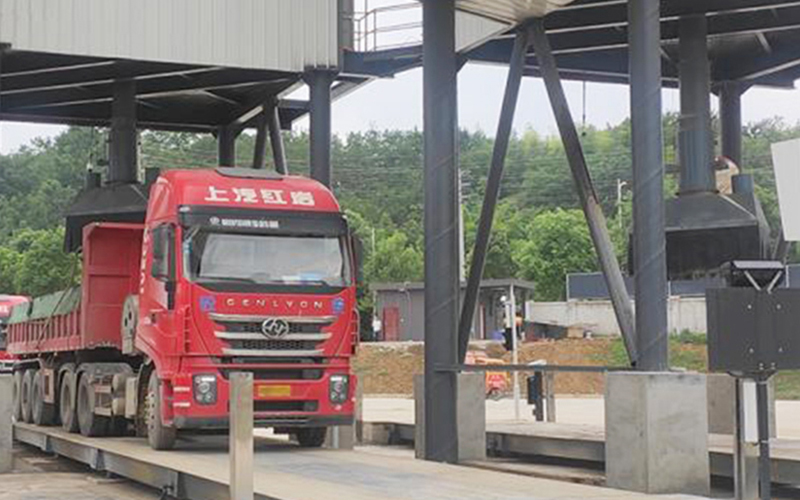

Truck loading speed	≤120S / per truck
Adaptable truck types	various types of truck
