Introduction

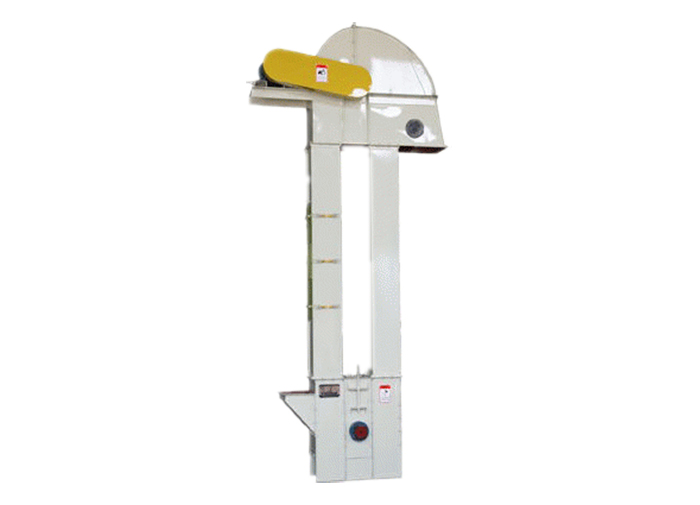

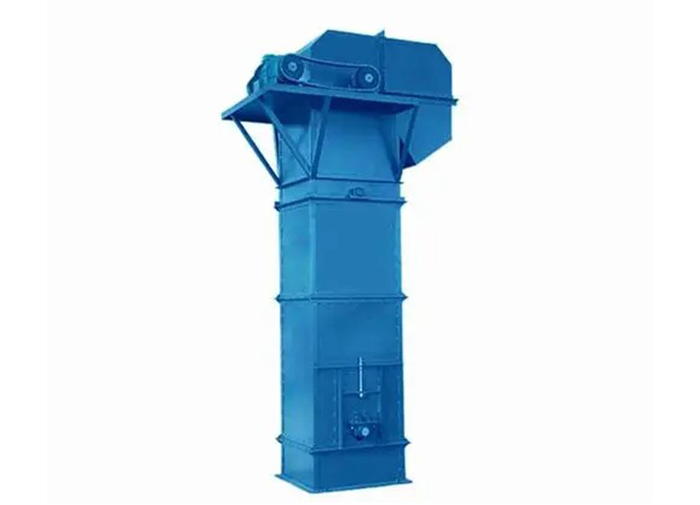

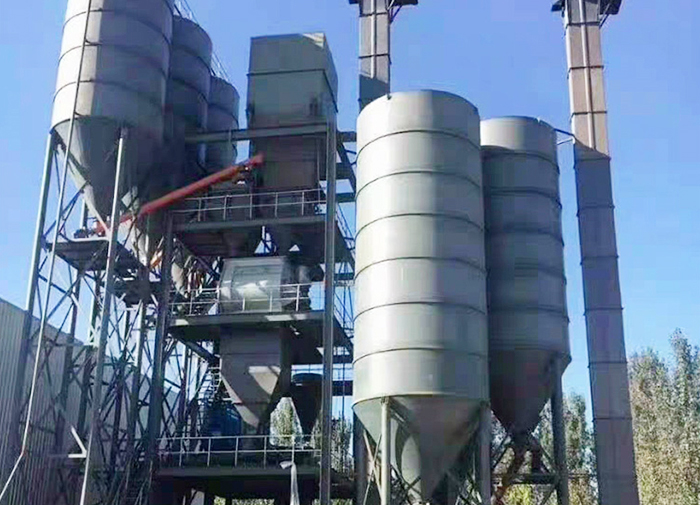

NE series bucket elevator is composed of running parts, driving device, upper device, middle housing and lower device.
Running parts consist of bucket and special chain. Bucket is wear-resistant bucket with high filling rate. Chain is alloy steel wear - resistant sleeve roller chain. The pin shaft is fixed with the outer chain plate, and the sleeve is fixed with the inner chain plate, which can effectively reduce the wear of bearing parts.

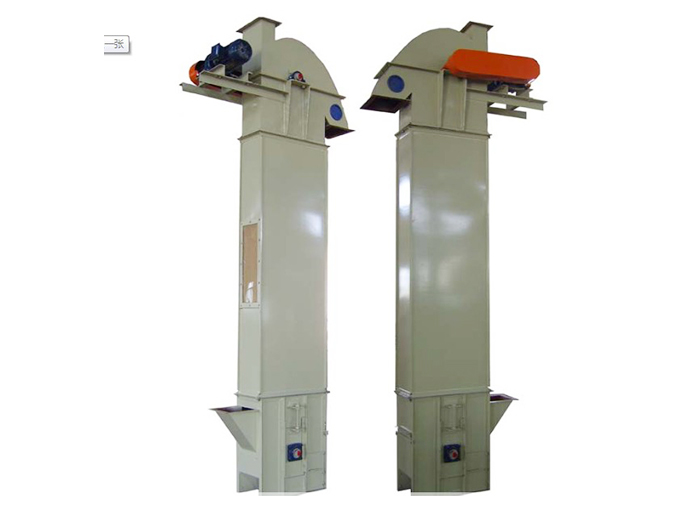

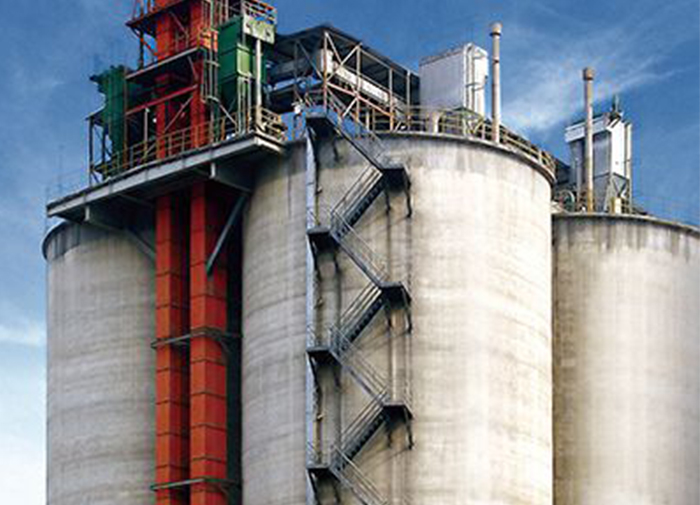

The drive device is a variety of drive combinations, and the drive platform is equipped with maintenance racks and railings. The driving device is divided into left installation and right installation. According to the special requirements of the owner, to select designated brand of motor, reducer, bearing and other external parts, and respond to the power supply voltage frequency requirements of the owner. For specific projects, Beumer and Aumund products can also be used.

Advantages

Wide Lifting Range

Not only lifting the powder, pellet and block materials, but also lifting the abrasive materials.

Low driving power and low energy consumption

The energy consumption is about 1/3-1/2 of the ring chain bucket elevator for lifting the material with same weight to same height.

Completely Sealed Structure

The whole machine is designed as complete sealing structure, without dust pollution during operation.

Strong Rigidity & High Precision

The casing adopts a rib-pressing structure with strong rigidity, high precision and beautiful appearance.

Parameter

Model of equipment	Lifting capacity		Bucket			Maximum lumpiness of material
	Cubic meter / hour (m³/h)	Volume (L)	Bucket spacing (mm)	Bucket width (mm)	Bucket speed (m/s)	Account for
	Cubic meter / hour (m³/h)	Volume (L)	Bucket spacing (mm)	Bucket width (mm)	Bucket speed (m/s)	10	25	50	75	100
NE30	32	7.8	305	300	0.5	90	75	58	47	40
NE50	60	15.7	305	300	0.5	90	75	58	47	40
NE100	110	35	400	400	0.5	130	105	80	65	55
NE150	170	52.2	400	600	0.5	130	105	80	65	55
NE200	210	84.6	500	600	0.5	170	135	100	85	70
NE300	320	127.5	500	600	0.5	170	135	100	85	70
NE400	380	182.5	600	700	0.5	205	165	125	105	90
NE500	470	260.9	700	700	0.5	240	190	145	120	100
NE600	600	300.2	700	700	0.5	240	190	145	120	100
NE800	800	501.8	800	800	0.5	275	220	165	135	110
