Belt scale

Introduction

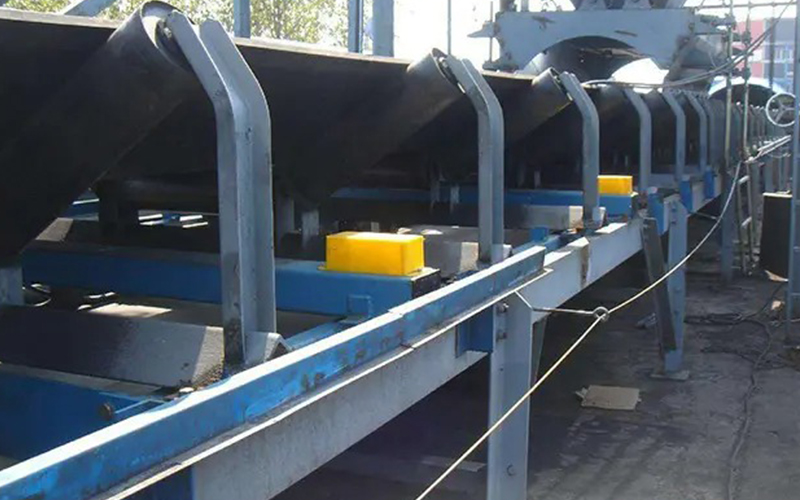

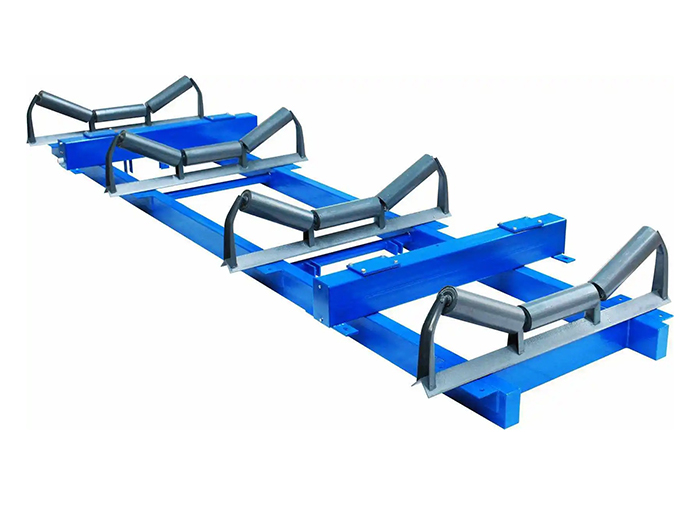

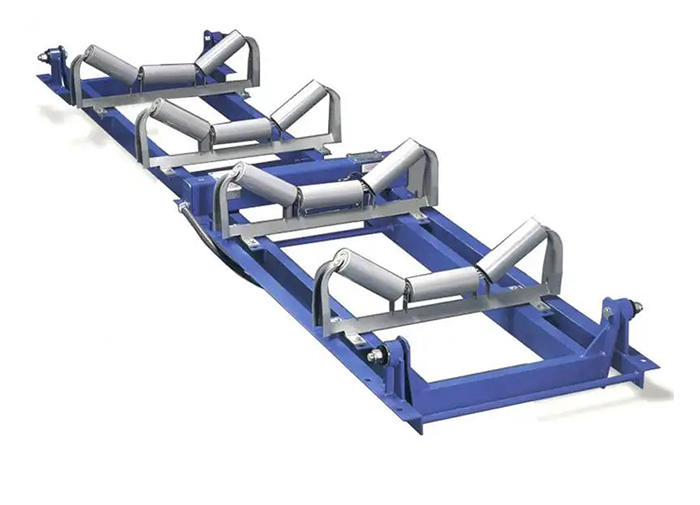

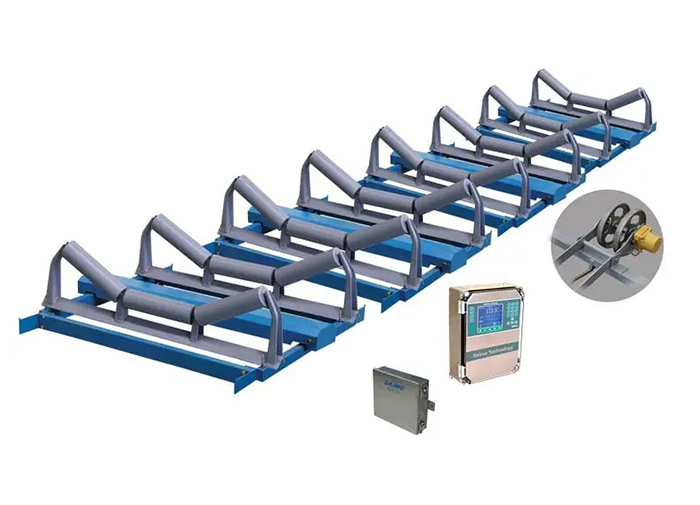

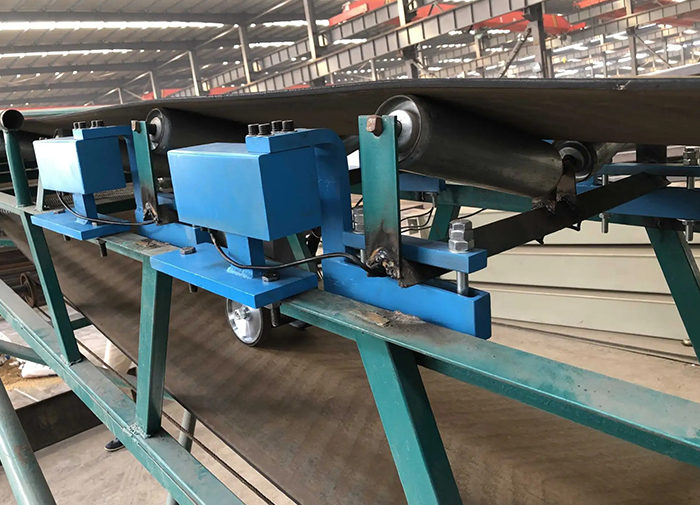

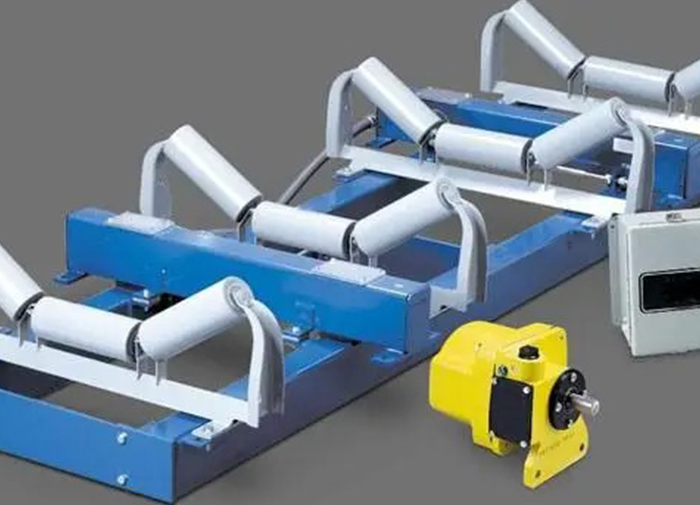

Electronic belt scale is generally composed of scale, weighing sensor, speed sensor and secondary instrument. Weighing of electronic belt scale is to transfer quality of material on conveyor belt and conveyor belt speed into electrical signals through weighing sensor and speed sensor when the material is in the conveying state. Then field amplifier properly processes the two sets of signals and transmits them to main control computer for accumulation, adjustment and control. Finally, the cumulative weighing results are given. This is the automatic and continuous cumulative measurement process of belt scale by using modern control principle.
Application
It is widely used in building materials, metallurgy, electric power, chemical industry, coal, mining, port and other industries for transportation process measurement.

Advantage

Stable & Fast

Accurate and stable transmission, and fast zero recovery.

Solid

With solid and anti-impact weighing bridge, it is suitable for working in harsh conditions.

Stable Measuring Accuracy

Non-deformed scale, and stable measuring accuracy.

Less Maintenance

No moving parts, and less maintenance.

Can Meet Various Control Requirements

With a variety of calibration methods and output interfaces, so it can meet various control requirements.

PARAMETER

Measuring accuracy	±0.5% ~±2%
Feeding and conveying capacity	1~6000t/h
Belt width	400~2200mm
Belt speed	0.01~4m/s
Installation inclination	0-18°
Working mode	Continuous
