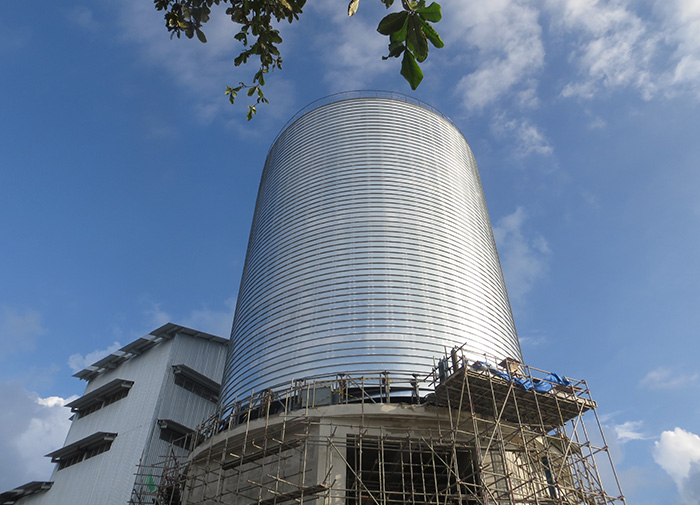

Spiral Steel Silo


Spiral silo refers to a silo constructed by spiraling the steel plate with a certain width into the rolling equipment during construction.
Spiral steel silo
Spiral steel silo
Spiral steel silo
Spiral steel silo
Spiral steel silo
Spiral steel silo
Spiral steel silo
Spiral steel silo
Spiral steel silo
Spiral steel silo
Introduction

The protruding undercut thickness of a spiral silo is 5 times the original steel plate thickness, strengthening the structure and bearing capacity of the silo. The silo body structure is integrated without any holes, bolts, or screws, ensuring good airtightness. Additionally, the use of galvanized steel plates provides the silo with excellent corrosion resistance and a long service life. With the use of special equipment for spiral silo bending and seam biting, the quality of any part of the silo can be guaranteed.

Construction of spiral silos is fast, and the silo structure is safe and reliable. Due to the limitation of the steel plate thickness, the storage capacity of a single silo is generally not more than 10,000 tons.

Name:
*Email:
*Tel/Whatsapp:
*Message:
Advantages
01
High Strength
The inner wall of a spiral silo features vertical reinforcing ribs and transverse spiral undercut ribs, significantly enhancing the silo's strength and reinforcing its resistance to wind, earthquake, and snow loads.
02
Good Sealing Performance
The cylinder of a spiral silo is connected by spiral undercuts, ensuring excellent sealing performance.
03
Short Construction Period
The shortest construction period for a silo is 15 days, allowing it to be put into use as soon as possible to generate benefits for users.
04
Space Saving
The distance between two spiral silos can be as small as 500mm, maximizing space utilization and reducing land occupation area.
Safe Structural Design
3D Display
Smooth Discharge System
Precision Manufacturing
Outstanding Performance
Intelligent Control
Name:
*Email:
*Tel/WhatsApp:
*Message:
Process flow

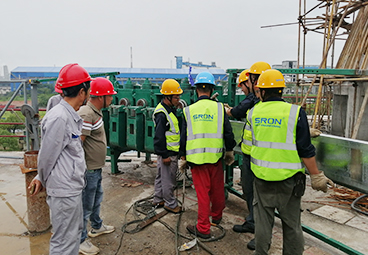

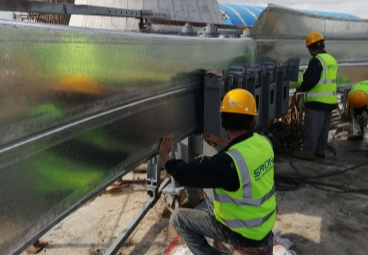

Equipment Positioning
The equipment is positioned according to the diameter of the silo body
01

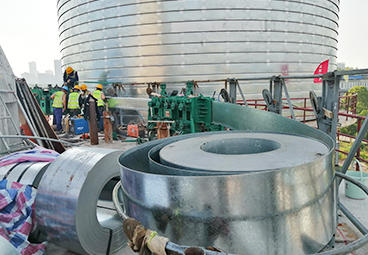

Rolling
After positioning, rolling silo body to about 2m height.
02

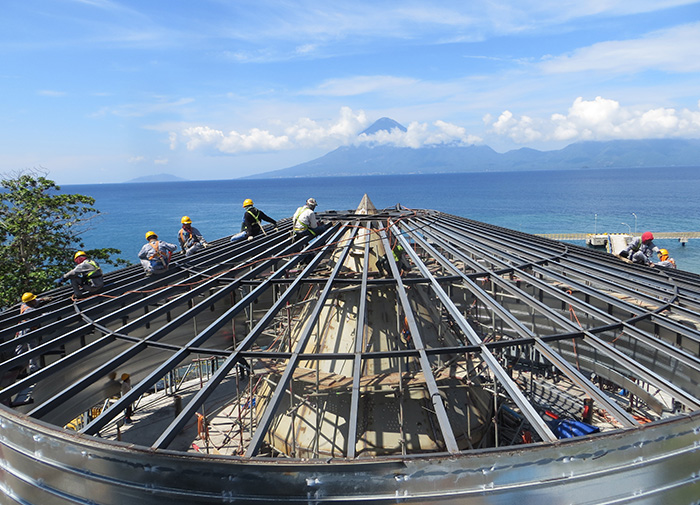

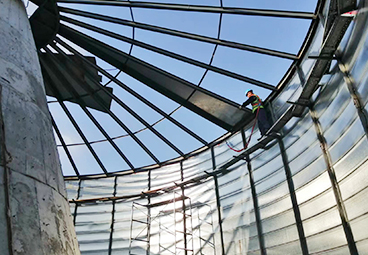

Install the silo roof
Use the plasma cutter to cut the silo roof horizontal line and install the silo roof.
03
Lifting of the silo
Lifting silo body to designed height.
04

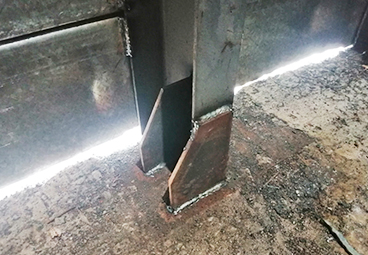

Rooting the Silo
Pull out the rolling equipment. Connectthe silo body with pre-embedded parts.
05

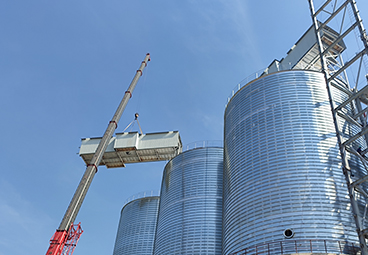

Install Catwalk and Auxiliary Equipment
It is installed in the form chosen by the user
06
Parameter
Height
Diameter
6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25
4 75 88 100 113 126 138 151 163 176 188 201
5 118 137 157 177 196 216 236 255 275 295 314 334 353
6     226 254 283 311 339 367 396 424 452 480 509 537 565
7         385 423 462 500 539 577 615 654 693 731 770
8         502 553 603 653 703 754 804 854 904 955 1005 1056 1106
9             763 827 890 954 1017 1081 1145 1208 1272 1336 1400
10             942 1021 1099 1178 1256 1335 1413 1492 1570 1649 1728
11             1140 1235 1330 1425 1520 1615 1710 1805 1900 1996 2091
12             1356 1470 1583 1696 1808 1922 2035 2148 2261 2374 2487 2601 2714 2827
13             1592 1725 1857 1990 2122 2255 2388 2521 2653 2786 2919 3053 3186 3318
14                   2308 2462 2626 2769 2923 3077 3231 3385 3559 3695 3848
15                   2649 2826 3003 3179 3356 3533 3709 3886 4062 4241 4418
16                         3617 3818 4019 4220 4421 4624 4825 5027
17                         4084 4310 4537 4764 4991
18                         4578 4832 5087 5341 5595
19                         5101 5384 5668 5951 6234
20                         5652 5966 6280 6594 6908
22                         6842 7223 7603 7982 8362
24                         8143 8595 9048
25                         8835 9326 9817
